Ready AC Power

the energy you need directly from your roof
Configure
ready_image

All-in-One Technology

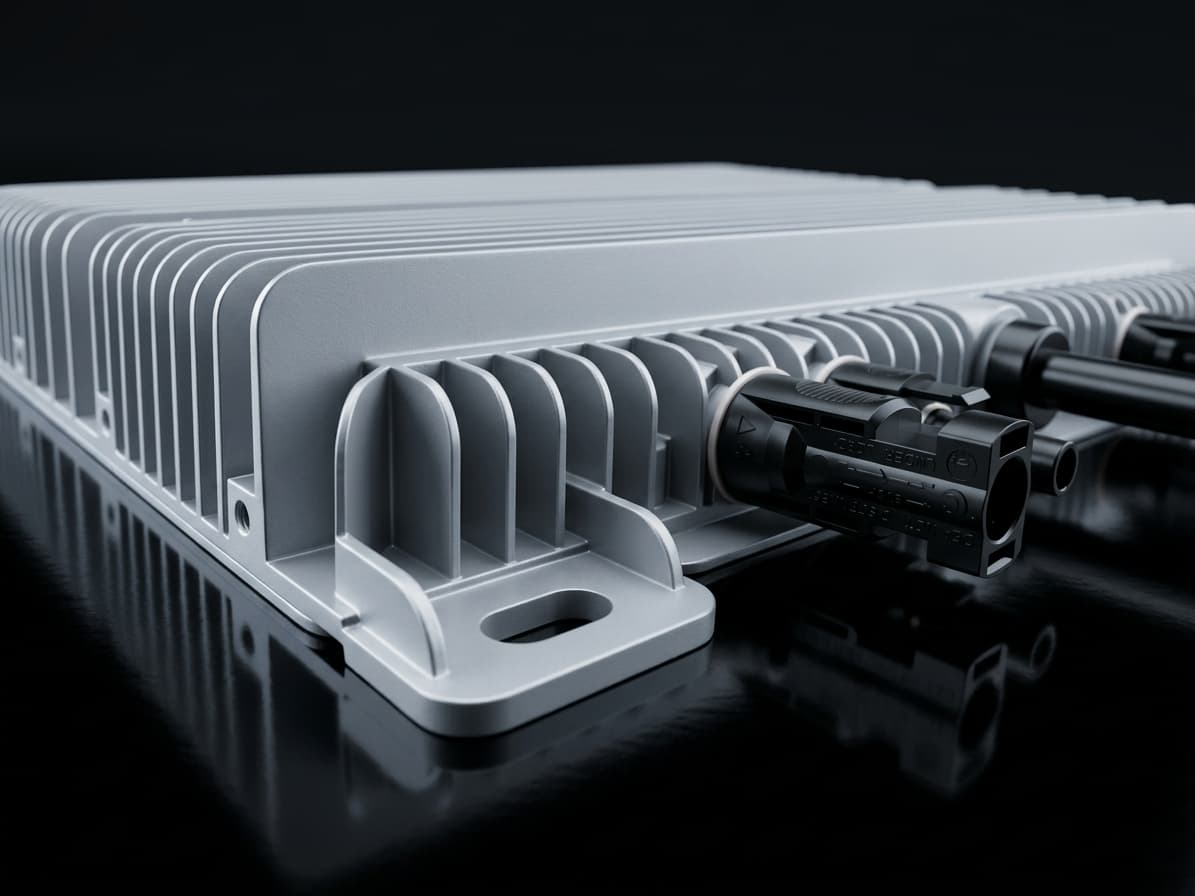

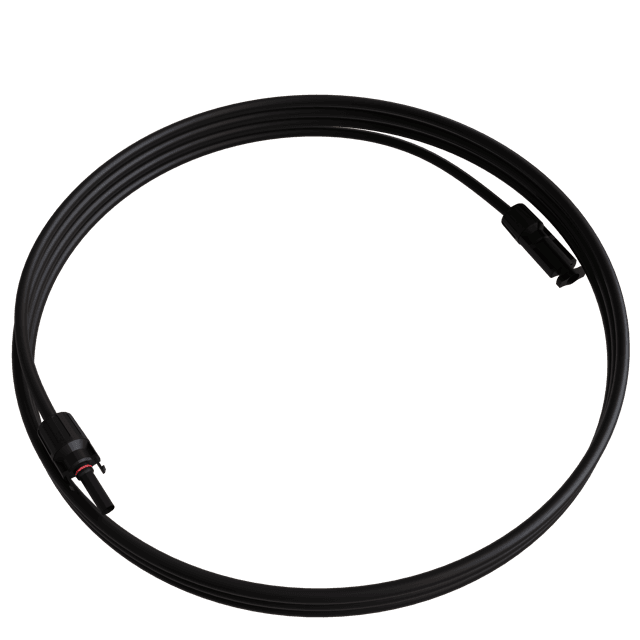

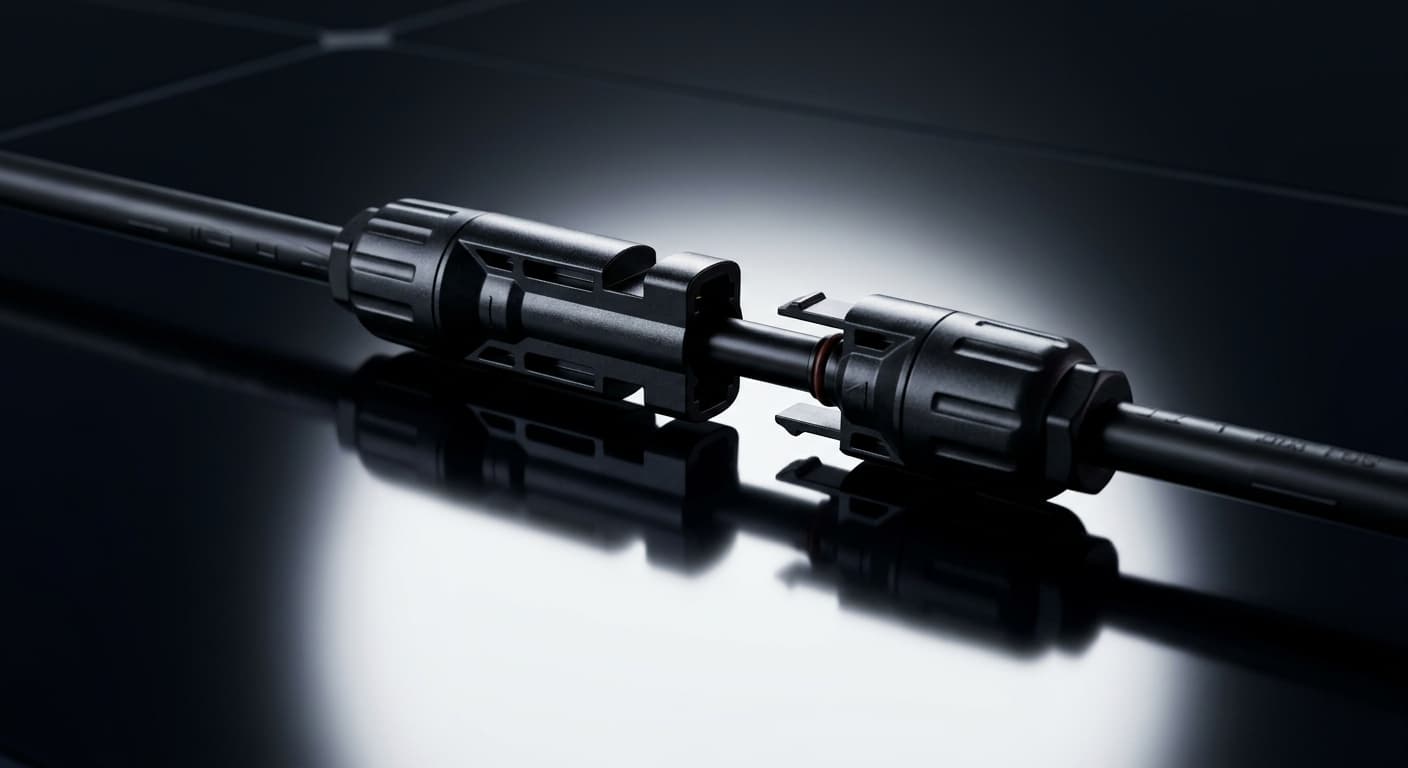

The All-in-One technology of Ready is fully wired and factory-tested. The module Master comes equipped with electronic conversion (inverter) with 4 independent MPPTs, AC-DC cables, and connectors, Wi-Fi antenna, and robust perforated aluminum casing with Laser Fiber technology. The coupling with the photovoltaic module is fixed using aluminum supports and stainless steel screws.

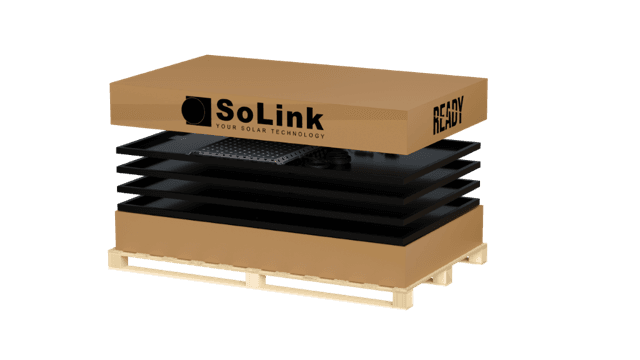

After assembly and testing, the Master module is packaged in a sturdy cardboard box with three other Slave modules to form a 1500 Wp kit ready to be delivered and installed either alone or with other kits to achieve the desired system power. With Ready technology, it is possible to create systems of any power starting from a minimum of 300Wp, both single-phase and three-phase.

*The Ready AC Power technology is also available in the Cellafredda hybrid version

ready_grid

With Ready AC Power, installing a photovoltaic system has never been easier.

ready_grid

Open the box

Install it

Turn it on

Modularity and range of the Ready AC Power photovoltaic system:

Up to three versions available, complete with single-line diagram to create any type of single-phase or three-phase system with maximum modularity and flexibility. The Ready AC Power range is compatible with all AC photovoltaic storage systems

Kit components:

ready_800_master

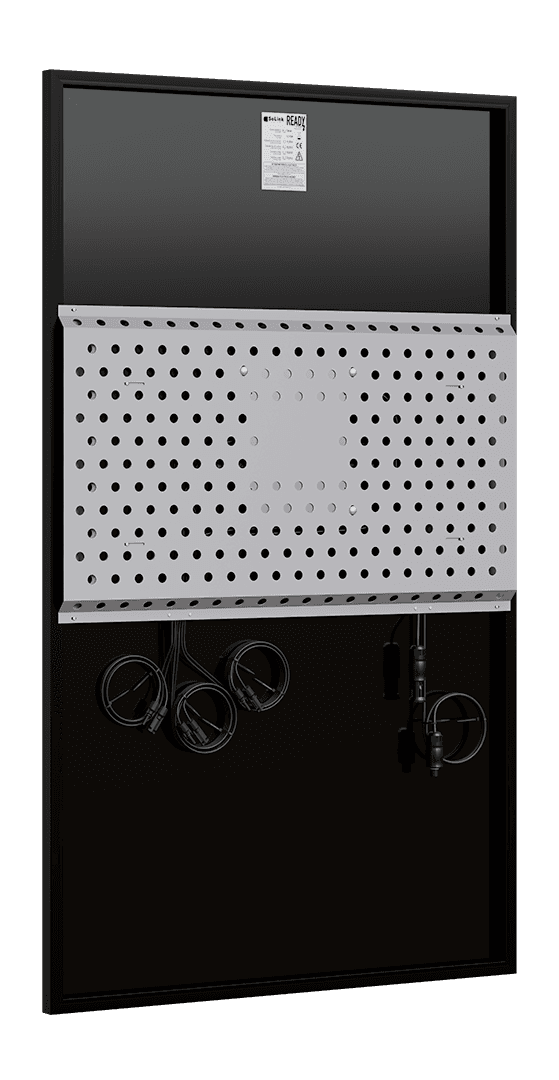

Master module

Photovoltaic module with onboard DC/AC conversion electronics

ready_800_slave

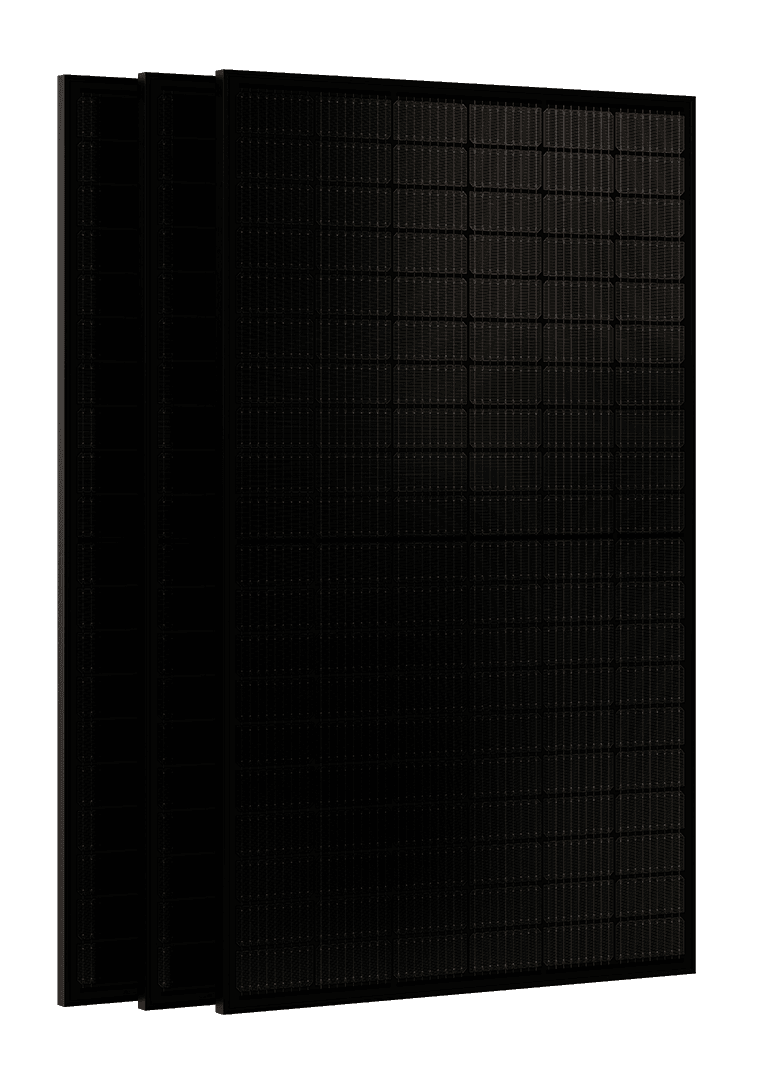

Slave modules

Depending on the chosen kit's power, these are the modules to be connected to the master panel

ready_grid

Ready 1500

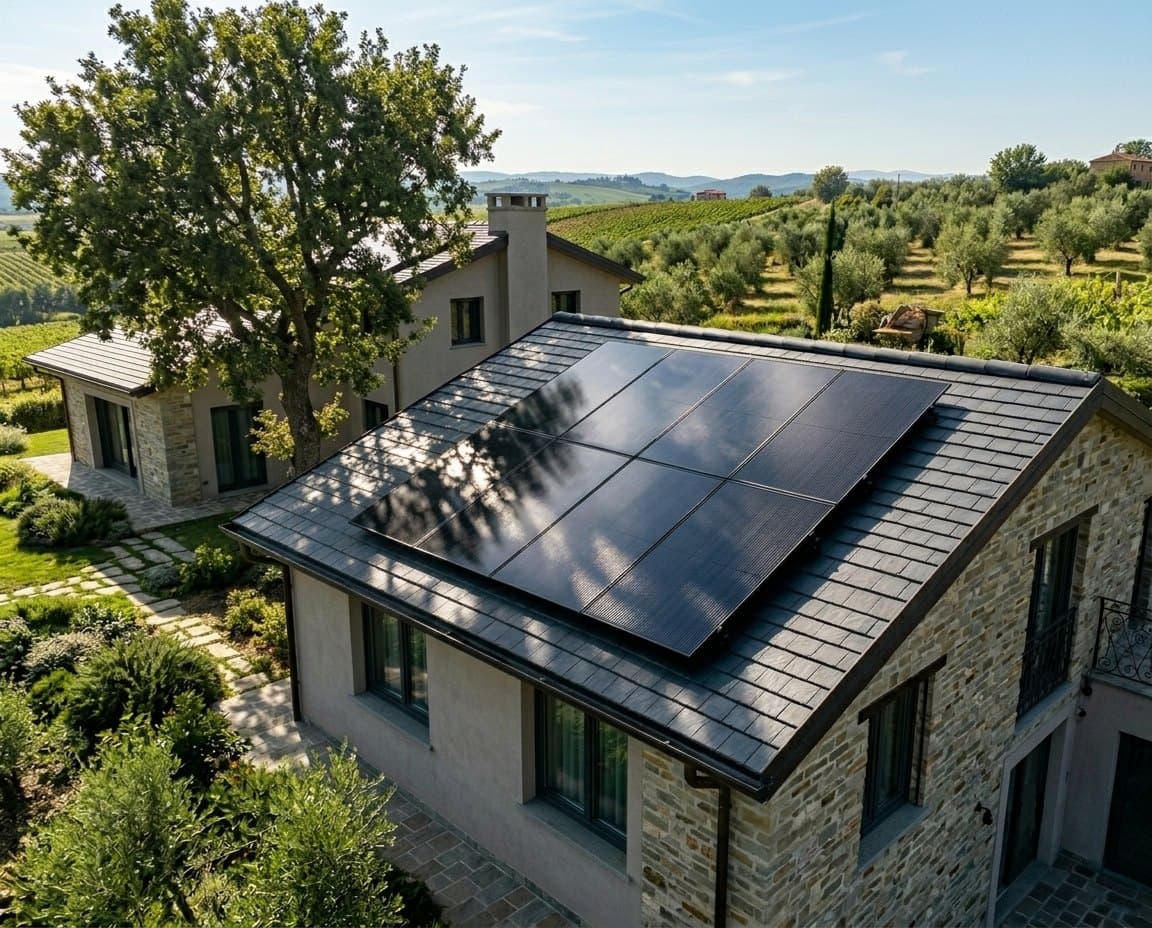

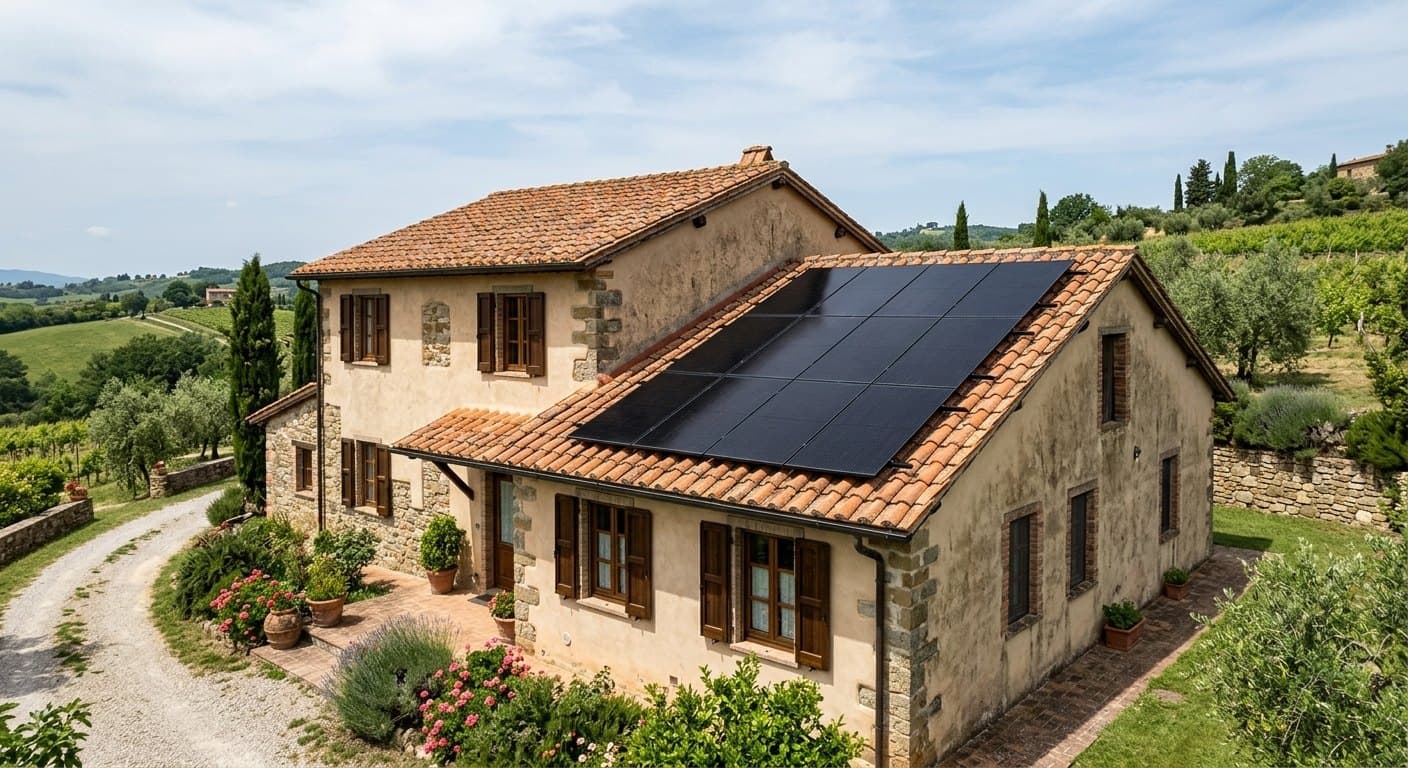

Roof version complete with 1600 W microinverter, integrated Wi-Fi antenna, and four 375 Wp super black monocrystalline silicon photovoltaic modules with high-efficiency PERC technology.
If you already have a photovoltaic system, you can increase the power without replacing the inverter.
AC 220 V single-phase power supply, Plug and Play installation.

Scalable up to4 Kitin parallel
Up to+20%of annual production
Integrated Wi-Fi module
Microinverter of 1600W
1Master module
3Slave modules
a single-phase power supply line

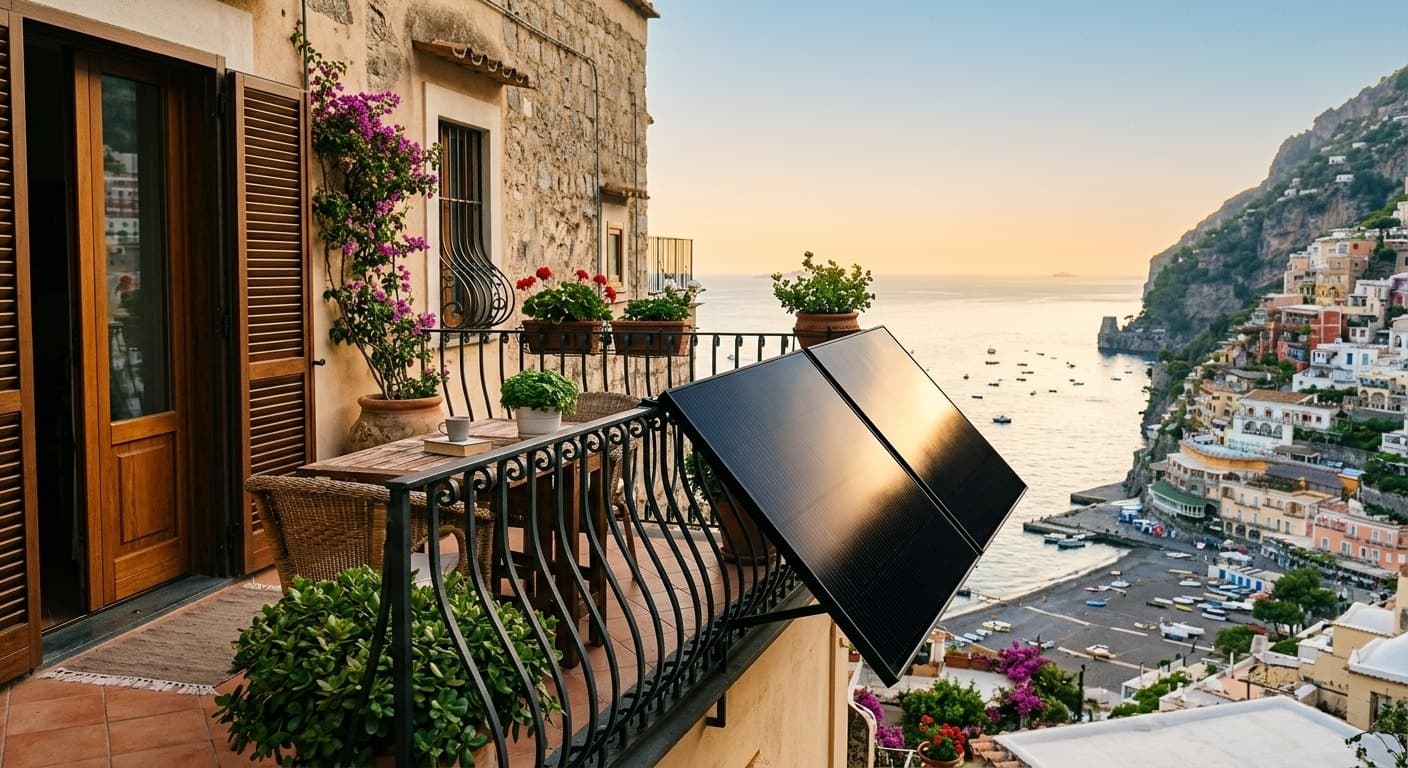

Whether it's a balcony, roof, or wall, there's no problem

ready_800_balcony

Ready 800

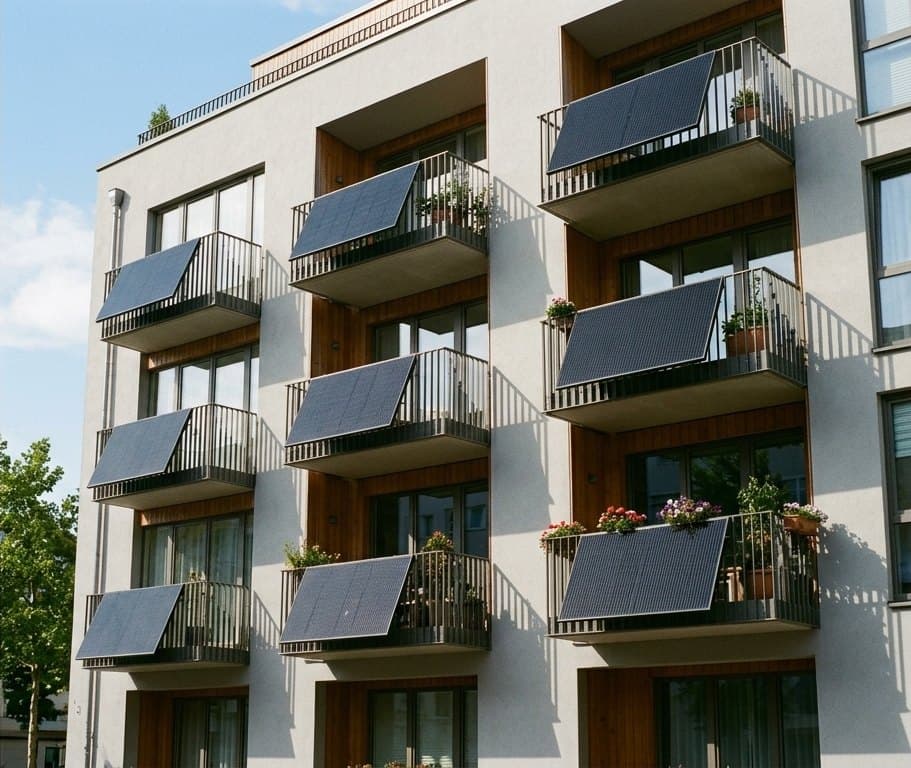

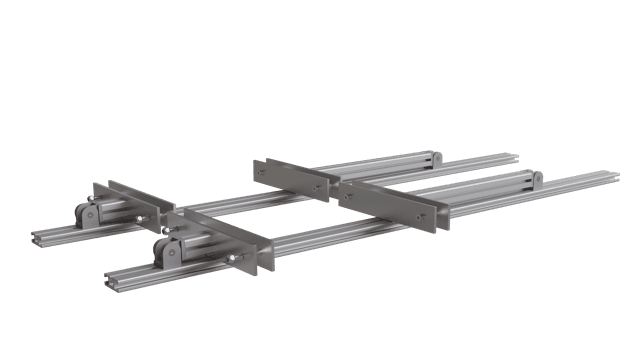

Balcony version, wall or roof complete with an exclusive universal aluminum mounting system pre-assembled on the module, 800 W microinverter, integrated Wi-Fi antenna, and two 375 Wp super black monocrystalline silicon photovoltaic modules with high-efficiency PERC technology.
AC 220 V single-phase power supply, Plug and Play installation.

*In the roof version, the mounting system is not provided.

Scalable up to6 Kitin parallel
Up to+20%of annual production
Integrated Wi-Fi module
Microinverter of 800W
1Master module
1Slave module
a single-phase power supply line
ready_one_balcony

Ready ONE

Balcony version, wall or roof complete with a universal aluminum mounting system pre-assembled on the module*, 300 W microinverter, integrated Wi-Fi antenna, and 375 Wp super black monocrystalline silicon photovoltaic module with high-efficiency PERC technology.
AC 220 V single-phase power supply, Plug and Play installation.

*In the roof version, the mounting system is not provided.

Integrated Wi-Fi module
Microinverter of 300W

Safety first

Photovoltaic modules generate direct current (DC), which is converted into single-phase or three-phase grid current (AC) through the inverter. Standard systems with string inverters are created by connecting photovoltaic modules in series through so-called 'high-voltage DC strings,' which are on average less efficient.
Ready AC Power, in addition to being a parallel-connected photovoltaic system, directly converts module current from DC to AC on the roof, effectively optimizing the electrical production of the system and making it much safer because it operates at a 220V grid voltage and not at high-voltage DC.

Performance

We can demonstrate that, for the same installed power, a system created with Ready AC Power technology achieves annual electricity production performance that is approximately 20% higher than a standard string inverter system. The main strengths are as follows:

  • Inverter startup at low voltages starting from 10 W, while a string inverter starts at 80-90 W
  • Low voltage of direct current, which eliminates losses
  • Independent operation of each individual component, maximizing efficiency
  • High-quality components

Higher performance equals a shorter payback period for the investment, and high-quality components equal greater durability over time.

The Ready AC Power range is made in Italy and insured with international RC Helvetia coverage.

The Ready AC Power technology is protected by industrial patents.

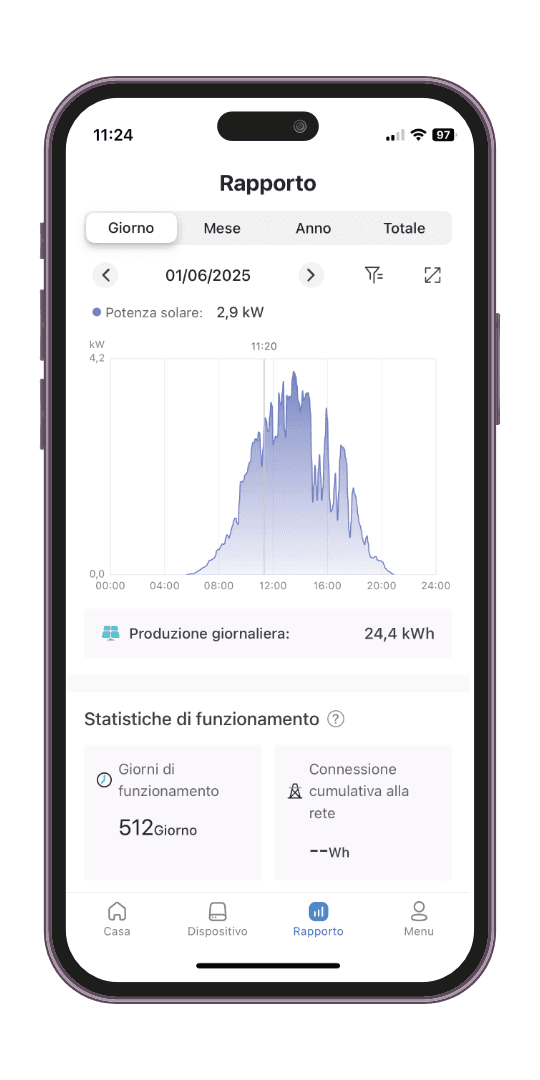

The entire system can be conveniently monitored via the app

With the monitoring app, your Ready AC Power system will always be with you!

Monitor your system:
The Ready AC Power app allows you to monitor the instantaneous operation of each individual component of the system.
Record production data:
Store daily, monthly, and annual production and the energy drawn from the grid or stored in batteries.
Business App:
With the free Business App, you can monitor all systems created from a single account and download all data, including inverter autotests.
app_store_badgeplay_store_badge
ready_app

Ready AC Power has been chosen by

unical logounical logounical logo
